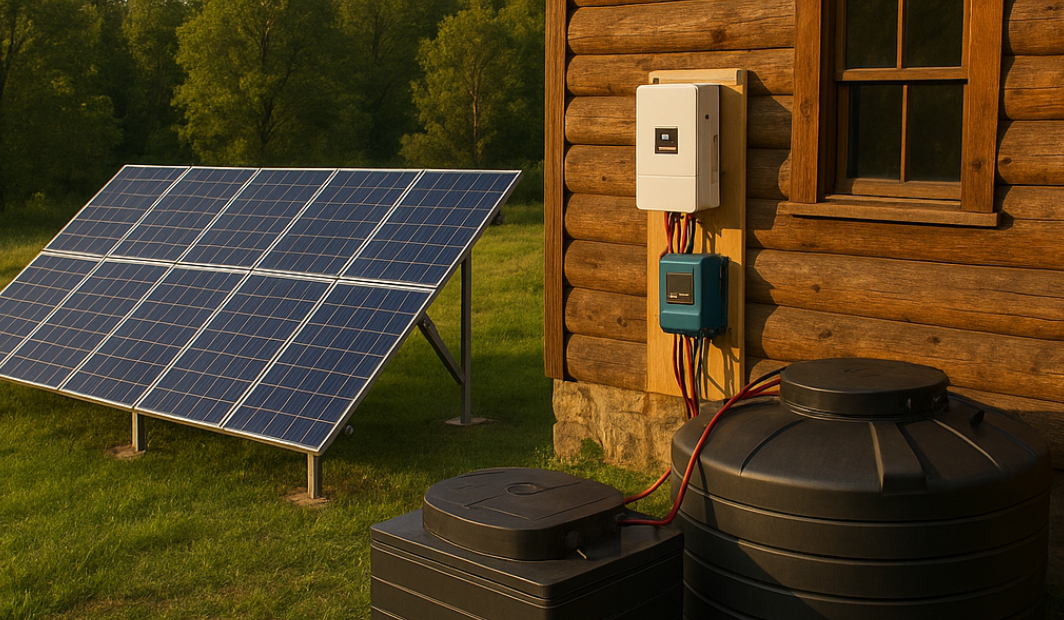

How to Design Your Off-Grid Power System (Without Wasting Thousands)
If you’re dreaming of going off grid, there’s one system that will make or break your setup is your power system.
Get it right, and you’ll enjoy quiet, reliable energy for years.
Get it wrong, and you’ll waste thousands on the wrong components, deal with constant outages, or worse — burn out your batteries in a year.
This guide will help you design your off-grid power system the smart way — step by step, without wasting money on overkill gear or cheap components that don’t last.
Thanks for reading THE OFF GRID GUIDE! Subscribe for free to receive new posts and support my work.
Step 1: Know Your Real Energy Needs
Before buying a single solar panel, you need to know exactly how much power you use.
Most people start by guessing — and that’s how they end up with the wrong system.
Do this instead:
- List every appliance, light, and device you plan to use.
- Write down its wattage and how many hours per day it runs.
- Multiply watts × hours to get watt-hours (Wh).
- Add them all up for your daily energy demand.
Example:
- Laptop (60W × 4h) = 240 Wh
- Fridge (100W × 24h) = 2,400 Wh
- Lights (50W × 5h) = 250 Wh
Total: 2,890 Wh per day (~2.9 kWh)
💡 Tip: Add 20–25% to your total for inefficiencies and seasonal changes.
Step 2: Choose Your Battery Bank (The Heart of Your System)
Your batteries store the energy your panels produce — and they’re often the most expensive component.
Here’s what you need to know:
Battery Types:
- Lead-Acid (AGM or Gel): Cheaper, but shorter lifespan.
- Lithium Iron Phosphate (LiFePO₄): Higher upfront cost, but lasts 10+ years and can discharge deeper.
- Nickel-Iron (Edison style): Old-school durable, but inefficient.
To calculate battery capacity:
Daily usage (Wh) ÷ system voltage (V) = amp-hours (Ah)
Example: 2,900 Wh ÷ 12V = 242 Ah.
For 2 days of backup and 80% usable capacity:
242 × 2 ÷ 0.8 = 605 Ah of battery storage.
💡 Tip: Don’t undersize your battery bank — deep discharges shorten lifespan fast.
Step 3: Size Your Solar Array
Now that you know how much energy you need daily, it’s time to size your solar array.
Use this formula:
Daily usage (Wh) ÷ average sun hours per day = solar panel wattage
If you use 2,900 Wh/day and get 4.5 hours of sun:
2,900 ÷ 4.5 = 645W of solar (round up to 700–800W).
💡 Tip: If you’re in northern climates like Canada, oversize your array by 20–40% to handle short winter days.
Step 4: Pick Your Inverter & Charge Controller
Inverter:
Converts DC battery power to AC for standard outlets.
Pure sine wave inverters are best (cleaner, safer power).
Size it to 25% higher than your maximum expected load.
Example: If your max draw is 1,200W, get a 1,500W inverter.
Charge Controller:
Regulates solar charging to protect batteries.
- PWM: Cheaper, less efficient.
- MPPT: More expensive but can increase efficiency by 30%.
💡 Tip: MPPT is worth it if you have long cable runs or variable shading.
Step 5: Build in Backup Power
Even the best systems need a fallback.
A generator (gas, diesel, or propane) can recharge your batteries during cloudy weeks or when your system is maxed out.
Pair your generator with a smart charger so it kicks in automatically when voltage drops.
💡 Tip: A small 2,000–3,000W inverter generator is ideal — quiet, efficient, and enough to recharge most battery banks.
Step 6: Think Long-Term Efficiency
The most expensive part of any off-grid system isn’t the gear — it’s inefficiency.
Here’s how to make your system last:
- Use LED lighting everywhere.
- Choose DC appliances where possible (especially fridges).
- Invest in energy monitors to track usage.
- Clean panels monthly and check connections seasonally.
💡 Tip: Every watt you save is a watt you don’t have to produce — or pay for.
Off-Grid Power Design Checklist
✔️ Calculate daily watt-hour use
✔️ Choose battery type & size
✔️ Size solar array for worst-case conditions
✔️ Add MPPT controller & pure sine inverter
✔️ Include generator backup
✔️ Design for efficiency first
Final Thoughts
Designing your off-grid power system isn’t about throwing money at gear — it’s about engineering independence.
Start small, build modularly, and let your system grow with your needs.
If you get the foundations right, energy efficiency, storage, and backup, you’ll never have to worry about the lights going out again.
